Strokes are used to draw the countur of a shape, curve, or text. It defines the visual edge of an object and can be customized in terms of color, thickness, style, and pattern.

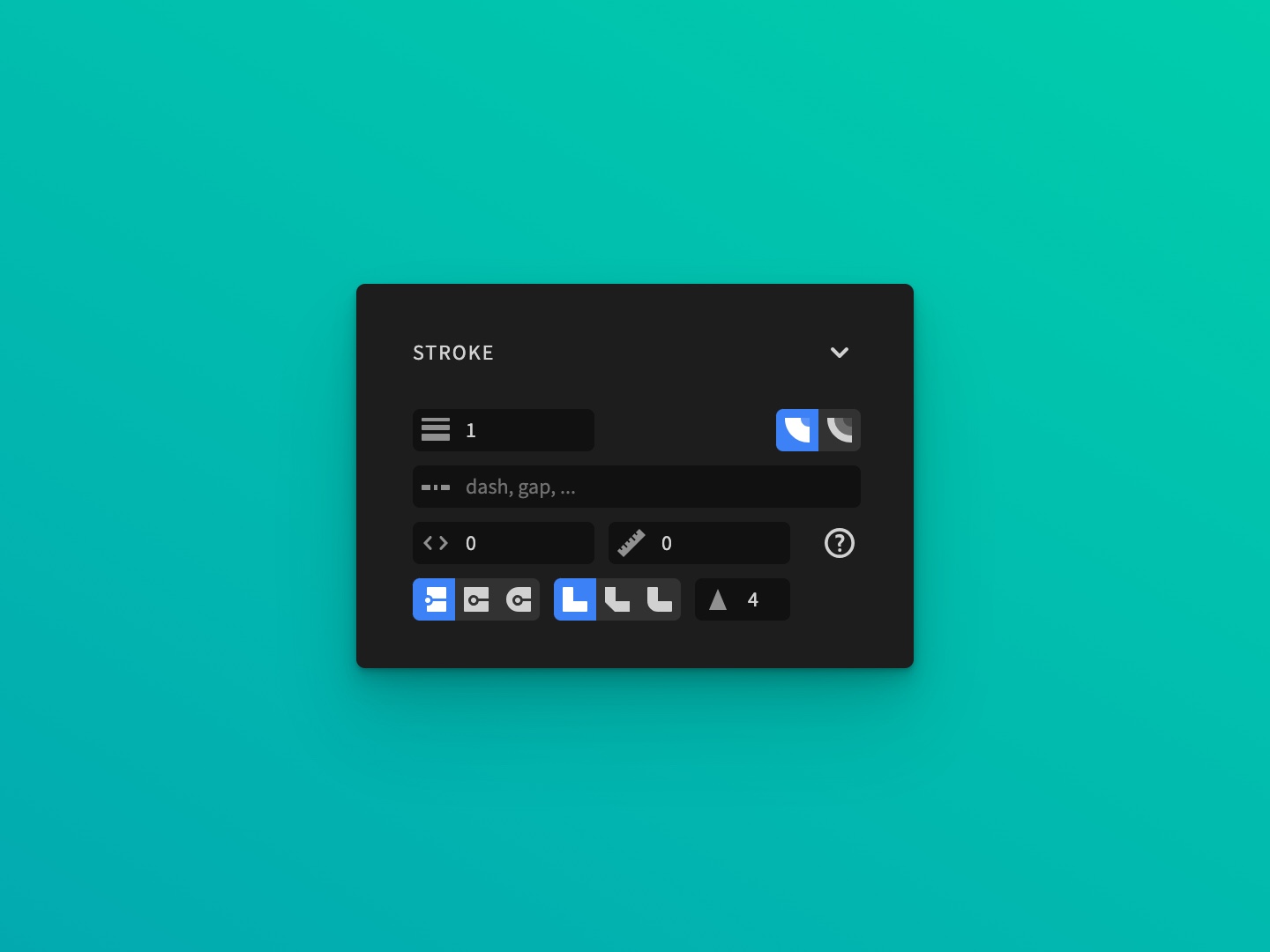

The following settings are available for strokes:
- Stroke width - Set the thickness of the stroke.
- Render order
- - Draw stroke on top of fill paint.
- - Draw stroke below the fill paint.
- Dash settings
- - Set dash pattern.
- - Set dash offset.
- - Set the path length.
- Cap style - The shape used to draw the end points of lines.
- Butt - Create lines that are squared off at the endpoints.
- Square - The ends of the lines are squared off by adding an extra box that's half the height of the stroke thickness.
- Round - The ends of the lines are rounded.
- Join style - The shape used to join two line segments where they meet.
- Miter - Creates stroked lines with pointed corners.
- Bevel - Creates stroked lines with squared corners.
- Round - Creates stroked lines with round corners.
- Miter limit - The limit at which Miter joins are transformed to Bevel joins.
